New Features:
– Big-bore-threaded oil-filled shocks (oil not included)
– Linear tuning ability threaded shock collars
– Rebuildable
– Damping adjustability
– Servo on Axle (SOA) set-up
– Places weight on axle versus a chassis mounted servo
– Steering geometry greatly improved
– HD Driveshafts
– Material diameter increased for greater strength
– Counter Rotating Rear Driveshaft
– Reduces torque twist for more planted and predictable climbs
– 1.5mm stub axle pins and hexes
– Slightly less play in the wheel
– Stronger system than the 1.0mm pins.

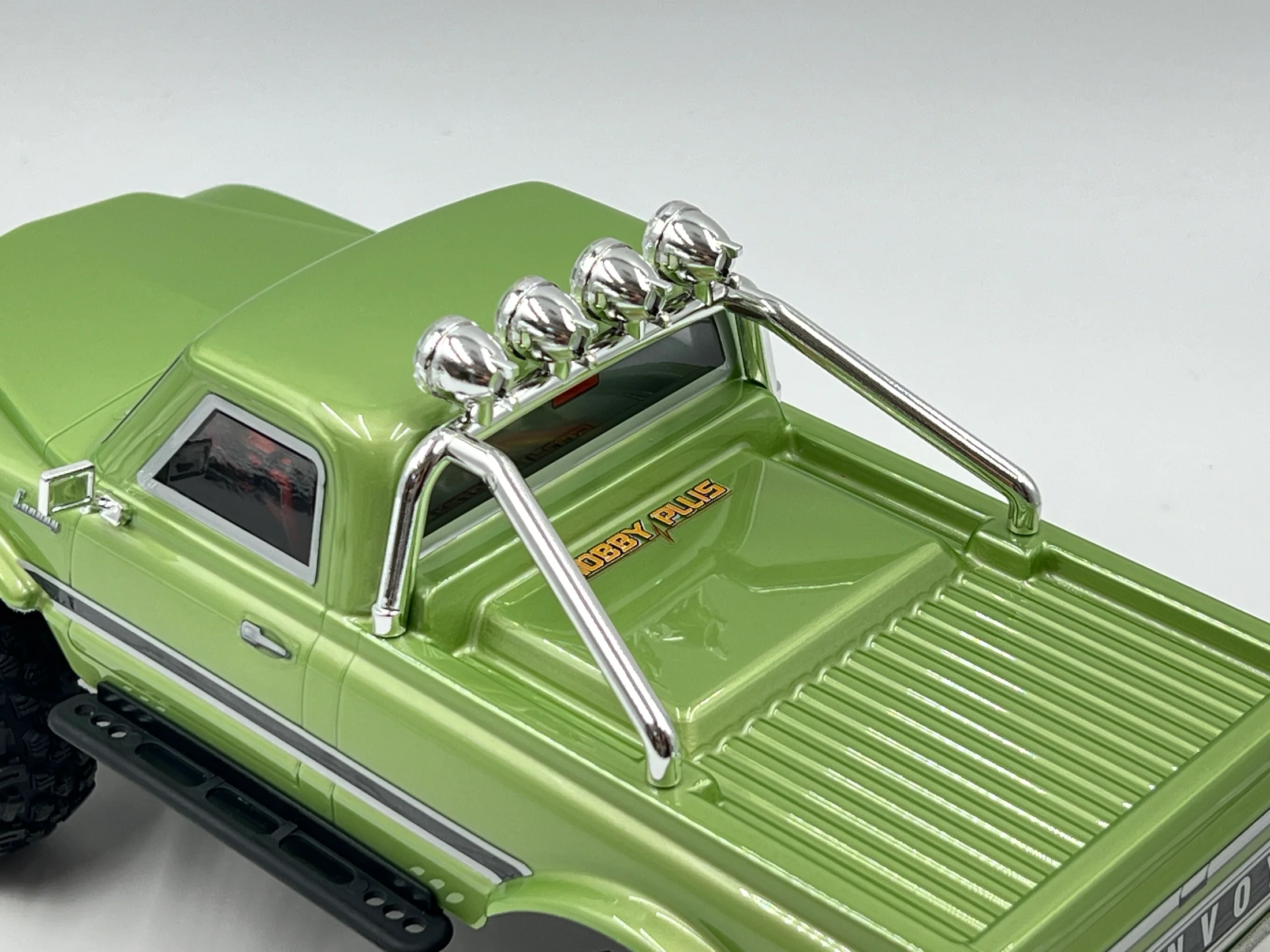

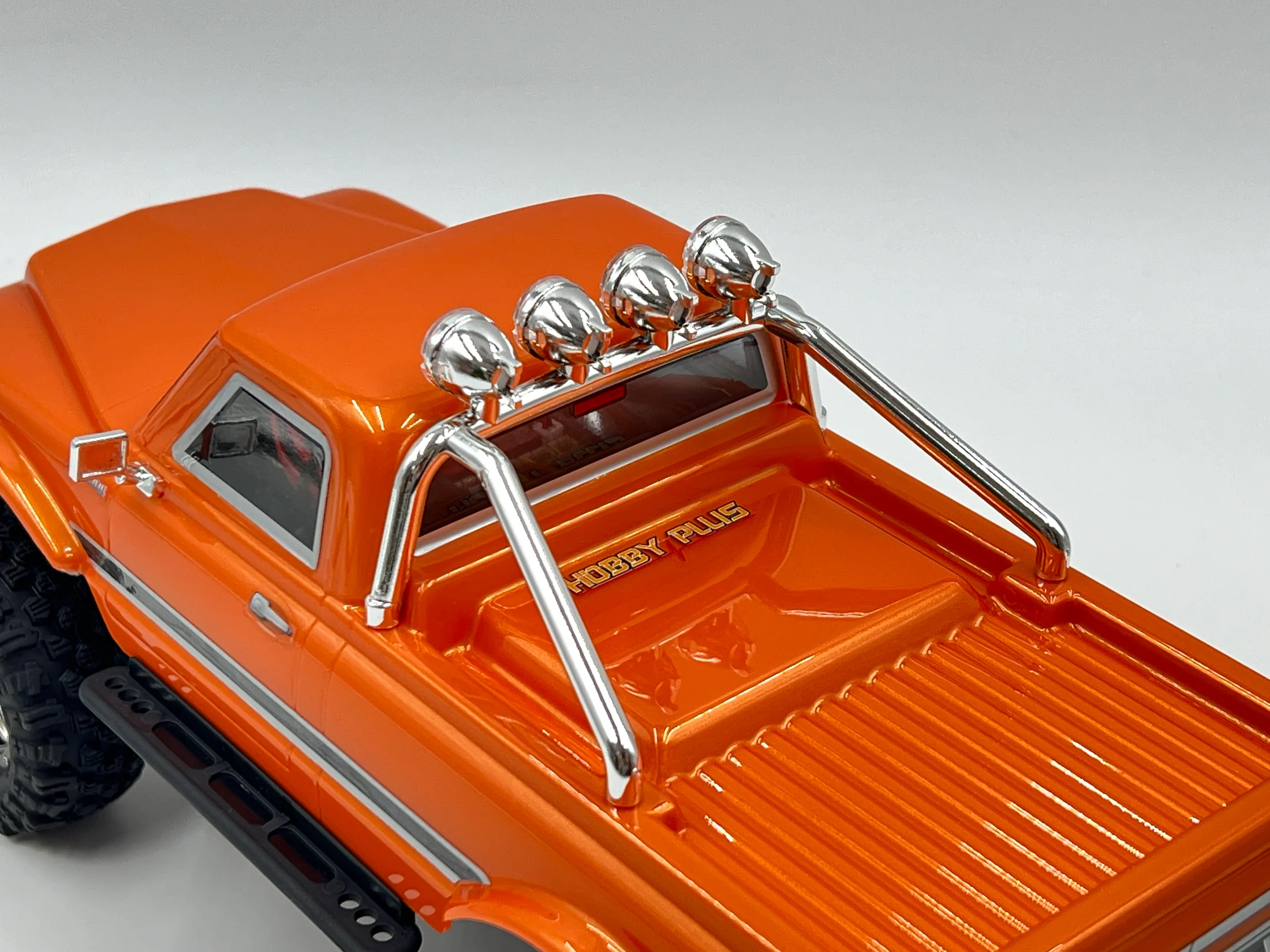

– High visibility graphics with painted finish and clear windows
– You have to look good, right?
– Scale look with clear windows
– Paint just pops through the polycarbonate
– Large wheel-well openings for added clearance

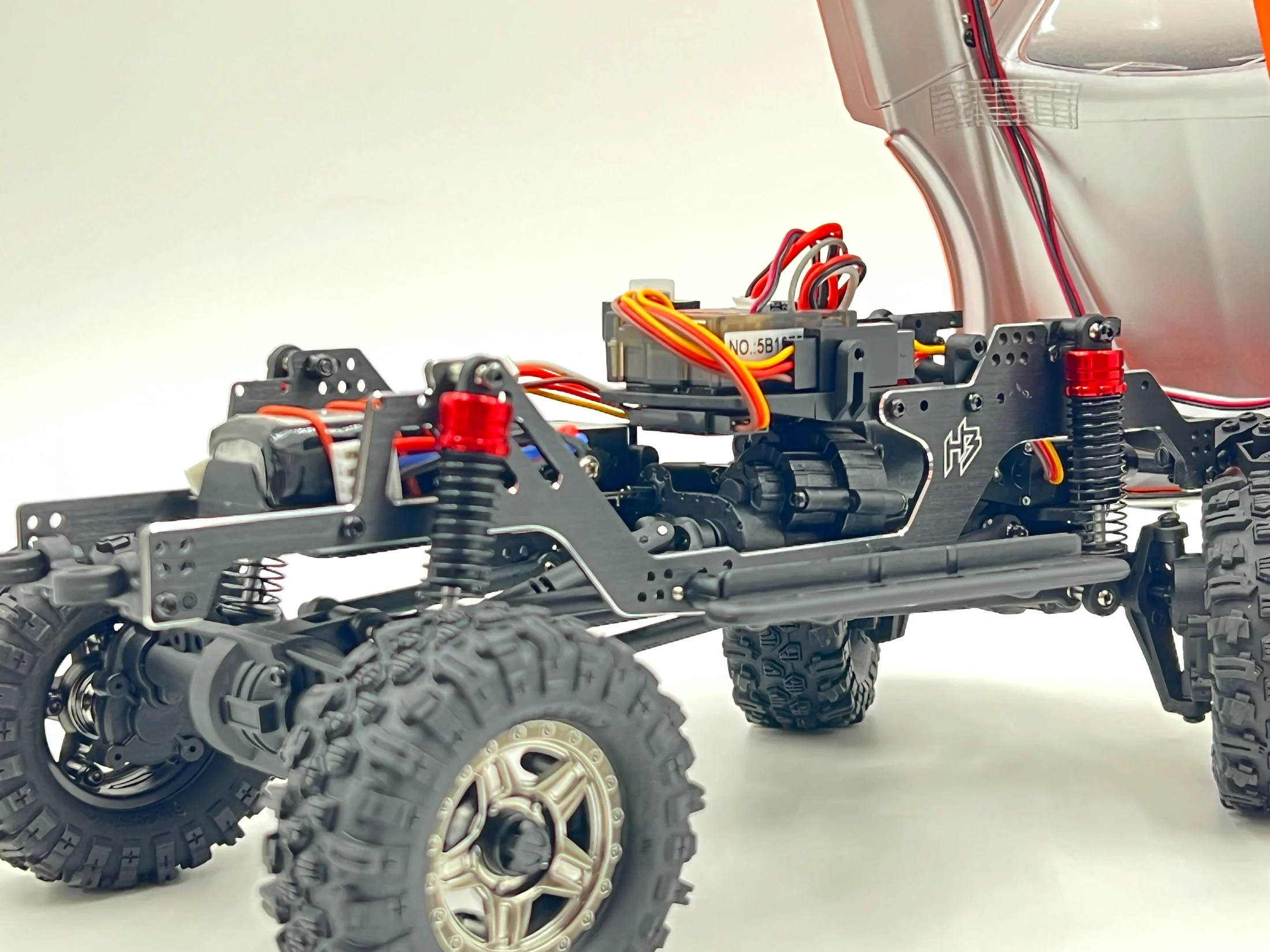

– Hinged body with hidden body clips
– Super easy access to the battery and entire chassis
– Winch Ready
– We made it easy to add a winch with the new EVO 2
Returning Features
– Portal Axles
– Supreme clearance
over traditional straight axles
– Multiple gear ratios available as
aftermarket support
– Full metal gear drivetrain
– Super-strong sintered
gears throughout the transmission, axles and portal hubs
– Two-Speed manual shift from the remote
– Counter-rotating rear driveshaft to minimize torque twist
– Full metal geared transmission (gear box, front & rear axle)
– CV Axles upfront
– Full-time 4wd
– Super clearance 5-degree Chassis
– Creates added clearance in the rear portion of the wheelbase to aid in clearance of large obstacles and overhangs.
– Aggressive shock and link geometry
– Low center of gravity minded design
– Operated LED lights from the remote (Rock Van only)
– Fly Sky Radio System
– Waterproof Electronics
– World-wide parts availability
– 2s LiPo Battery
– USB Charger
– Over a dozen option parts
available
Specs
Specifications:
– Length: 253mm
– Width: 138mm
– Height: 130mm
– Wheelbase: 160mm
– Weight: approx. 475 gram
– Drivetrain: Full Lock 4WD
– Shock: Oiled Filled Coil Spring
– Wheel: Internal bead lock
– Tire: 60mm Competition spec Super Soft Rubber
Electronics:
– Transmitter TX: 2.4ghz 4channel
– RX: 4ch (PPX4 grade water resistant)
– Battery: 7.4v 2S Li-po 600mah
– Motor: 180 55tURN
– ESC: FLYSKY ESC/RX combo
– Charger: USB with indicator
