ULTRA REALISTIC DETAILS

The TK07 body is made of 1.5MM PC with over 30 injection molded parts including wiper, steering wheel, door handles, mirrors, etc., taking realism to a new level

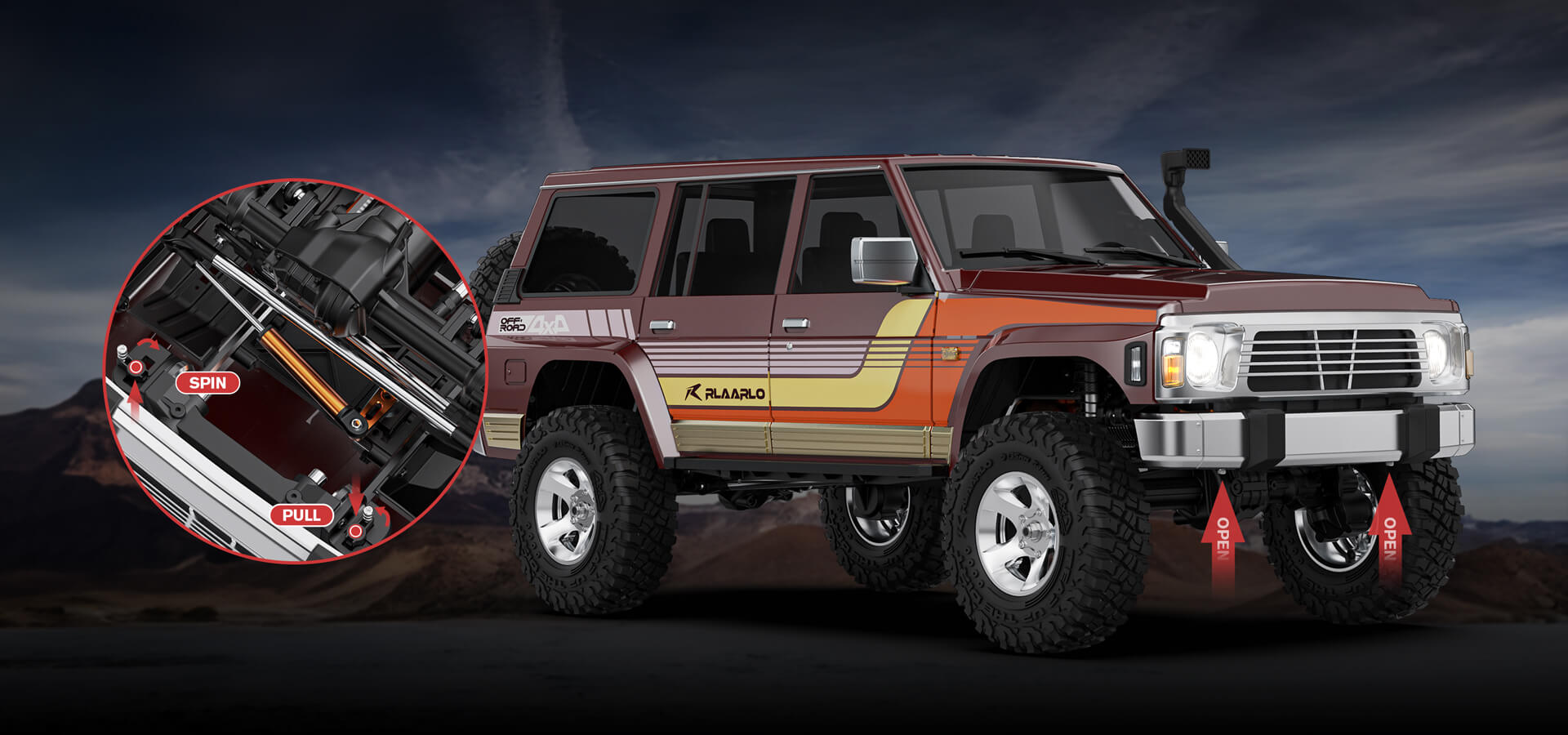

CLIPLESS BODY MOUNTING

The car shell is fixed with a spring-loaded swivel clasp, which perfectly combines smooth body lines with safe and convenient locking, making the disassembly and installation of the car shell simpler than ever and maintenance more convenient

TWO-SPEED SWITCHING

TK07 is equipped with a 25g metal gear shift servo for a true off-road experience, switching smoothly between high and low speeds

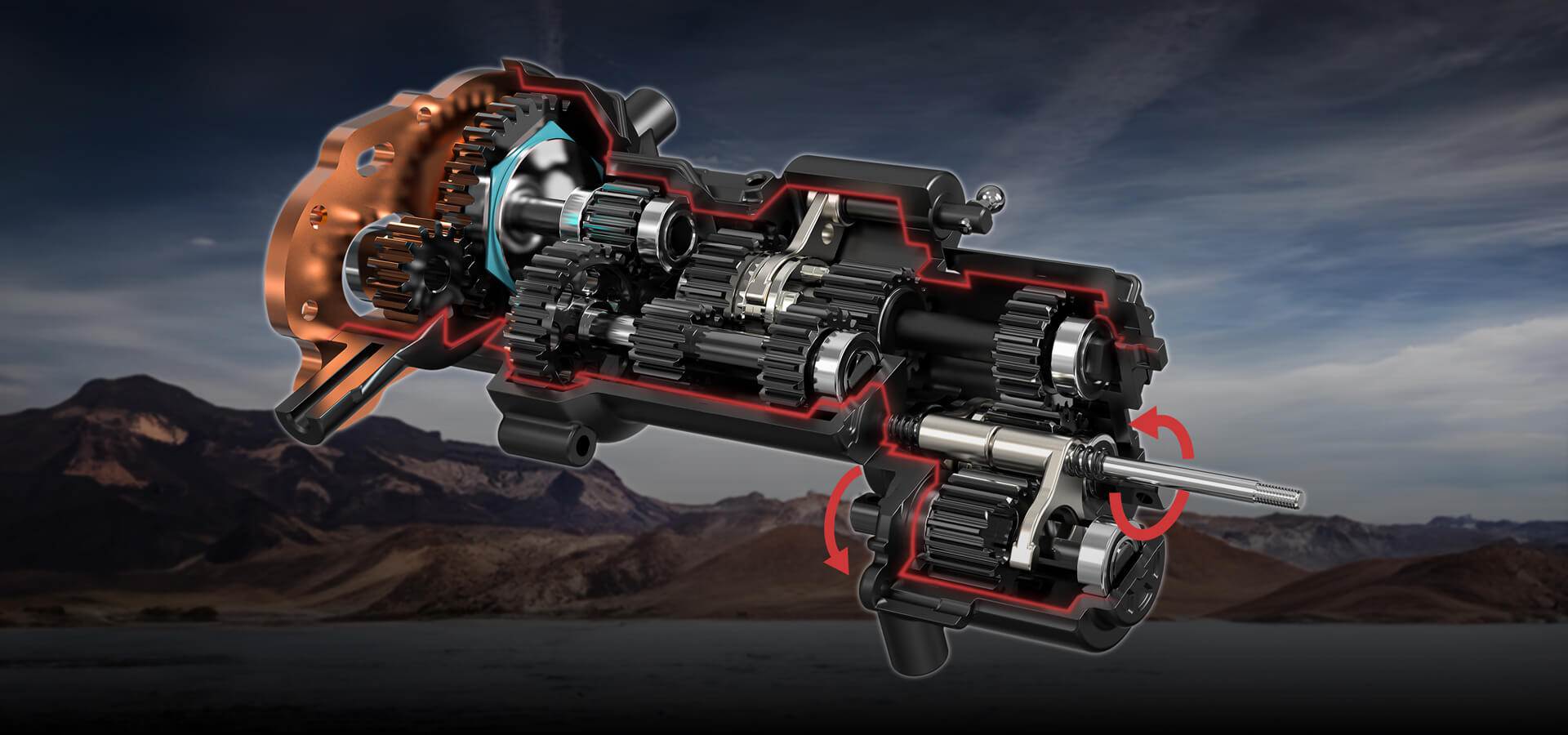

ALL-METAL GEARS

All driveline components in the transmission, gantry and axle gears are made of metal for extreme durability, and the TK07 offers 3 drive modes that allow you to lock the rear or front axle for front-wheel drive or rear-wheel drive

TOUGH CHASSIS

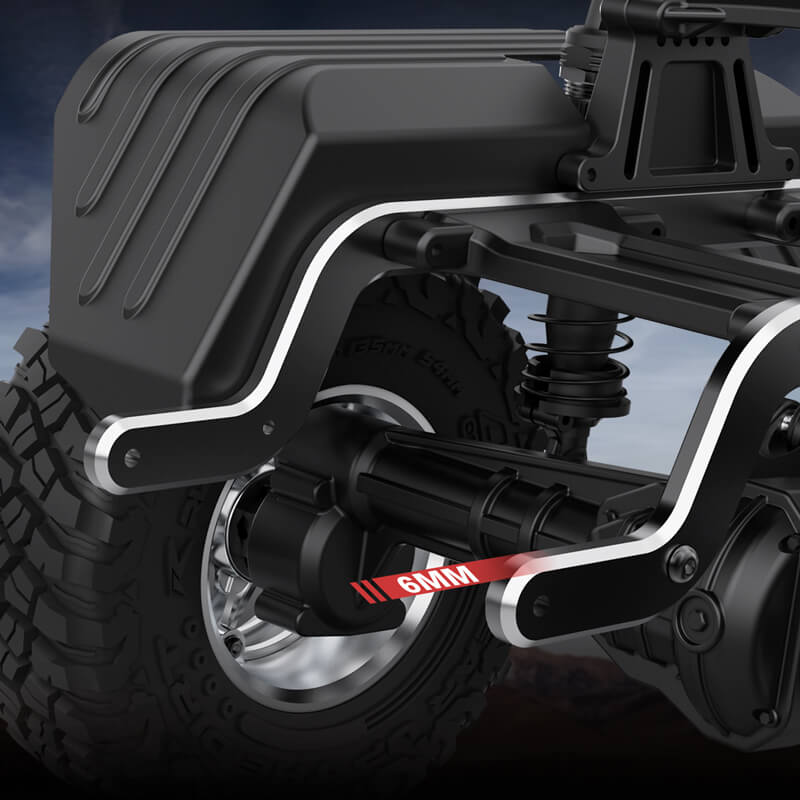

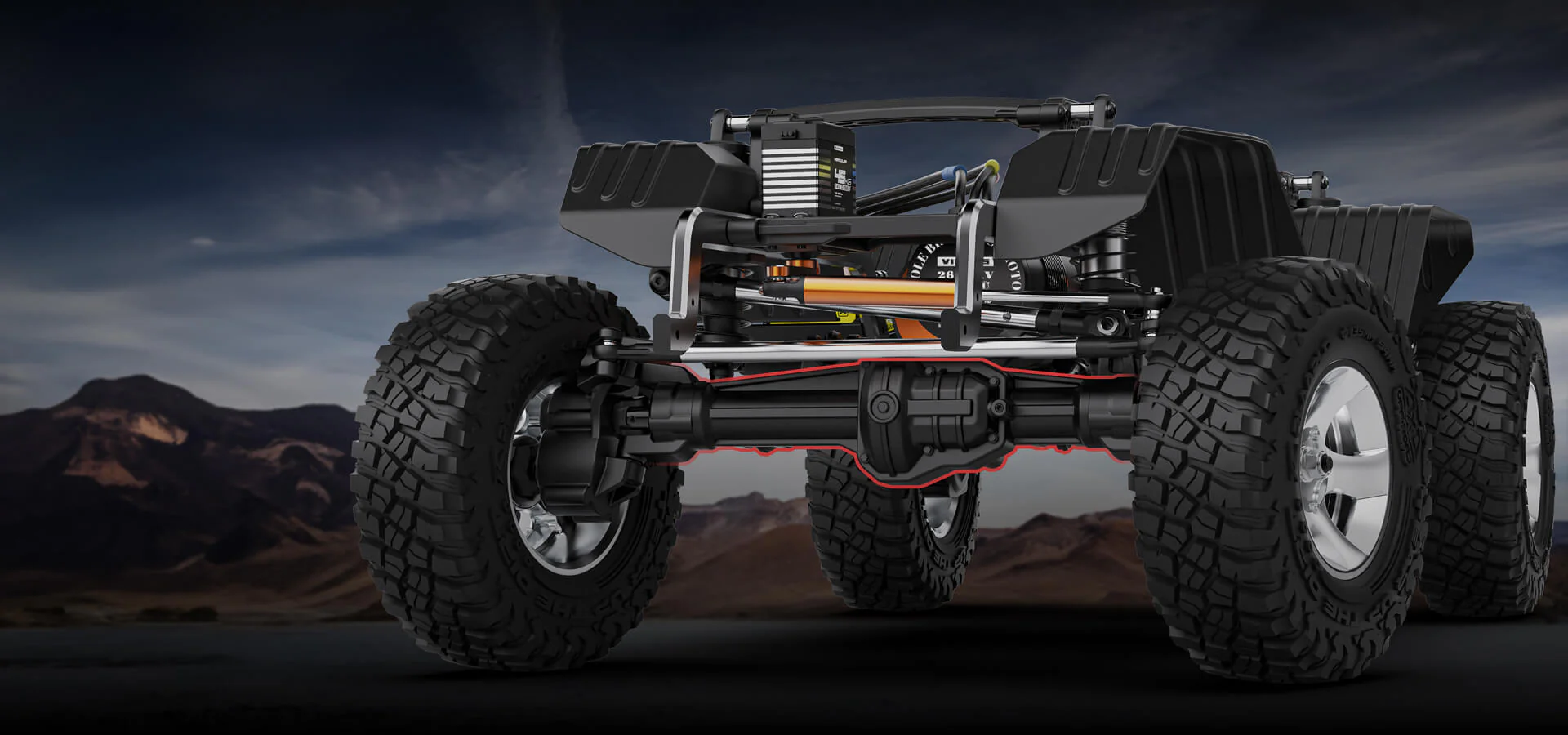

High-strength CNC aluminum alloy beam, 8mm stainless steel tie rods, door axle design, 120mm full-metal shock absorbers, flat bellhousing and thrust rod structure, sturdy and stable, simulation and performance at the same time

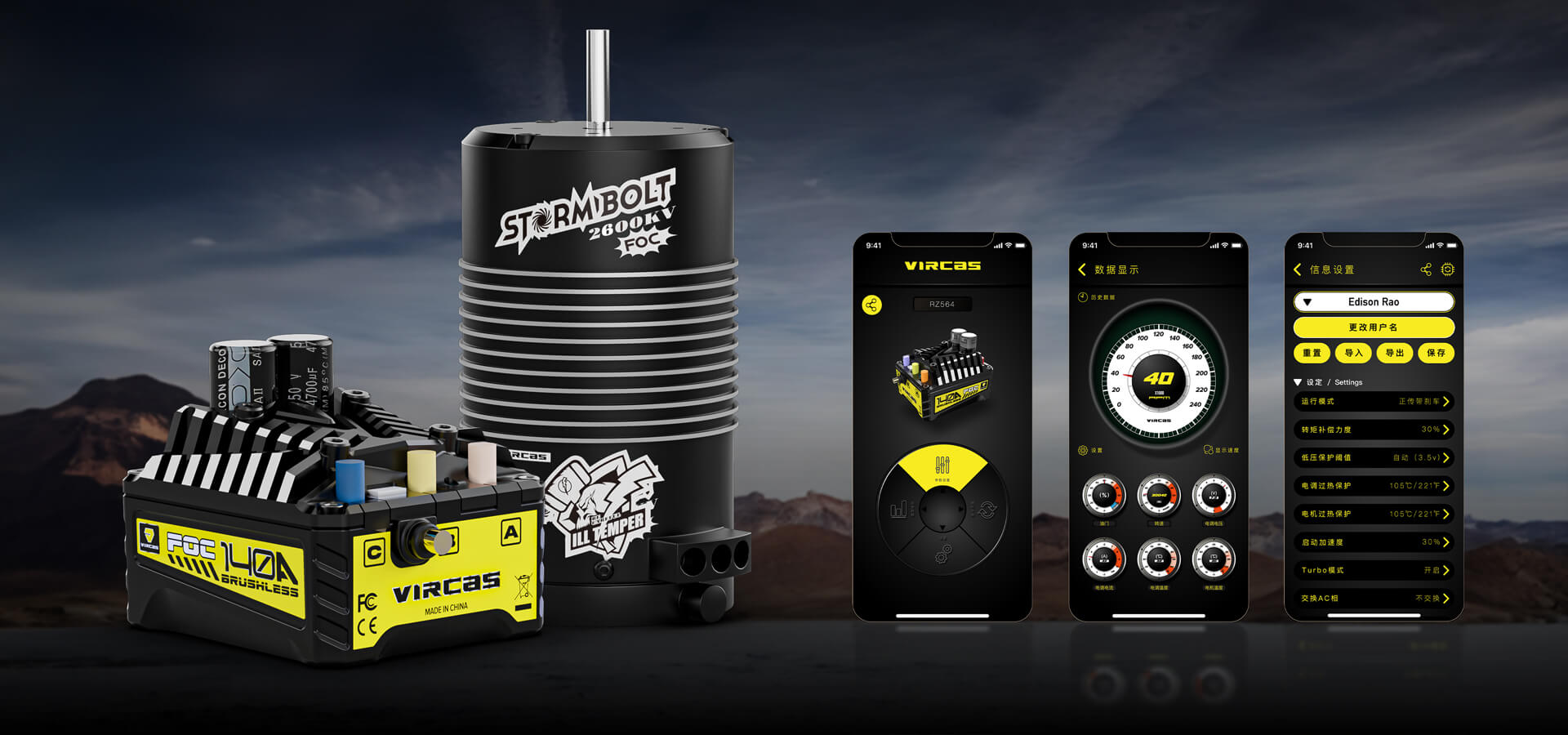

HIGH-POWER POWERTRAIN

Brushed version 5280 motor is powerful, brushless version 4282 motor runs quietly, linear and smooth, with brushed (brushless) 140A ESC, support 2-4S lithium batteries, long-lasting, to meet the needs of long-time driving

Treated with a high-gloss coating not only enhance the ruggedness of the car but also add to the overall aesthetics of the vehicle

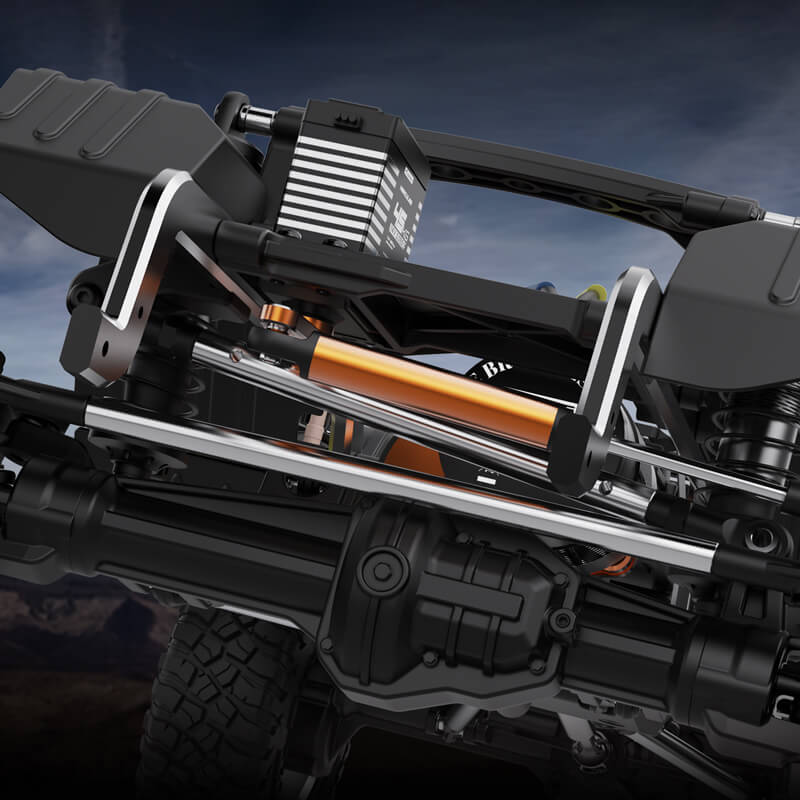

• 3 Link Panhard Steering Link System

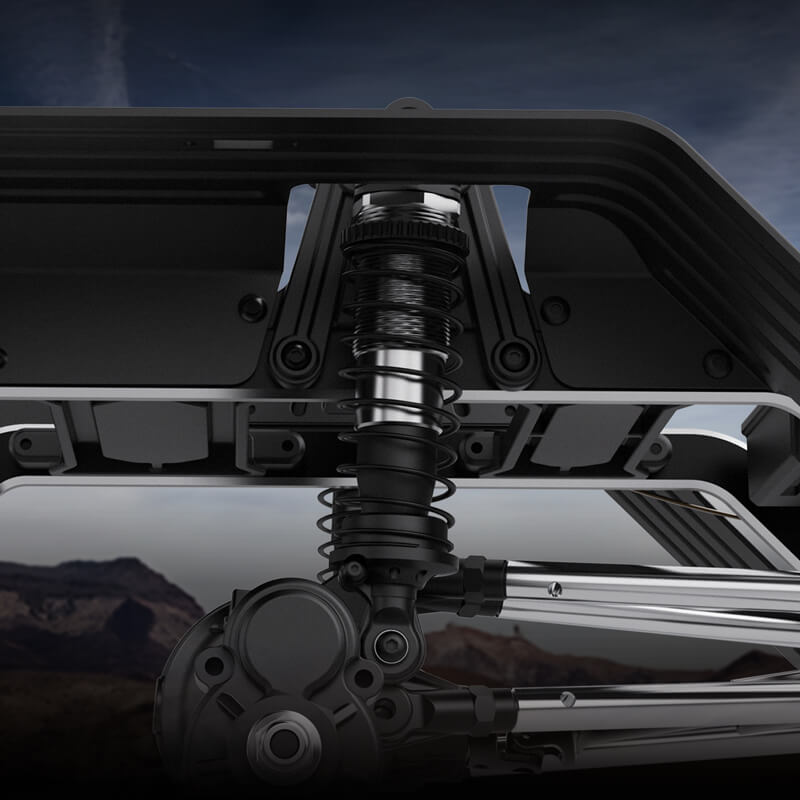

• Aluminum Scale Shocks

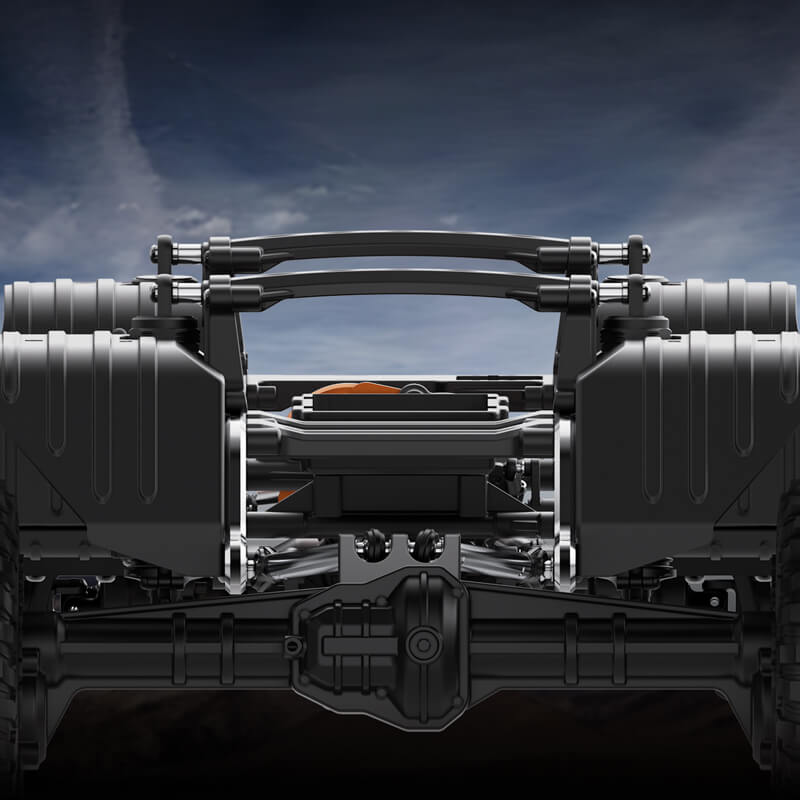

• Molded Inner Fenders

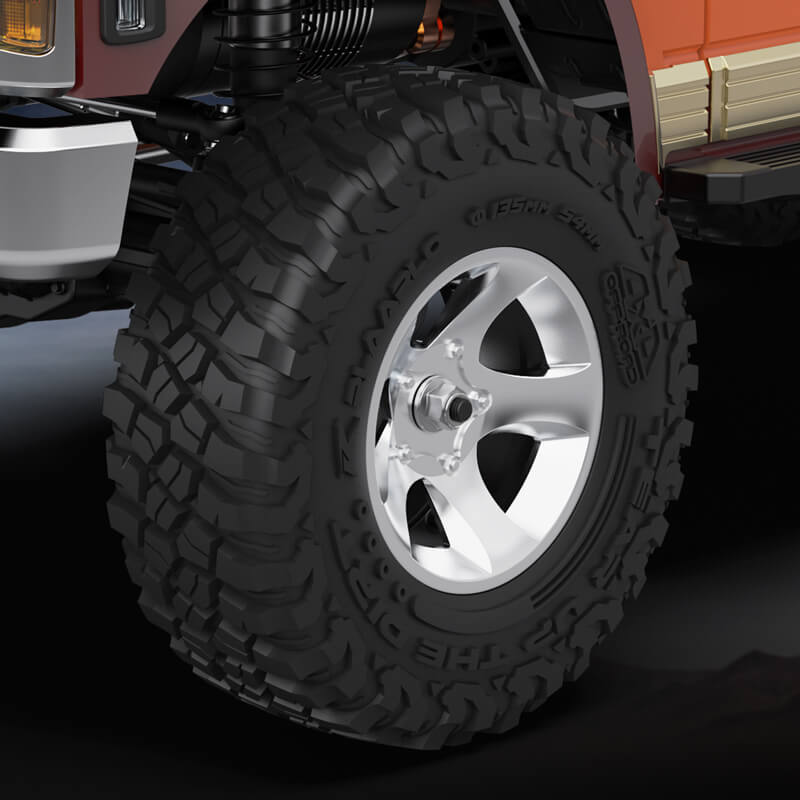

• Simulation Design Big Tire

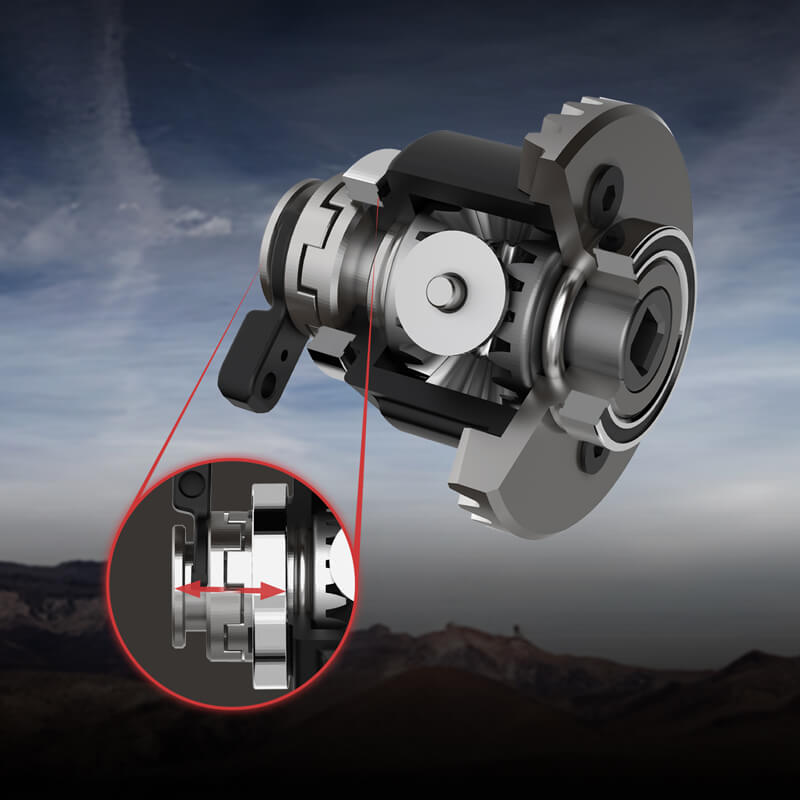

• Front and Rear Differential Design

  When the terrain becomes more challenging, locking the rear differential or locking the front differential will allow the tires to obtain better power distribution and allow the vehicle clear the obstacle easier

• Tri-Drive Modes

• High-Low Transmission

• Twin Friction Plate Slipper Clutch

• Large Size Steel Gears

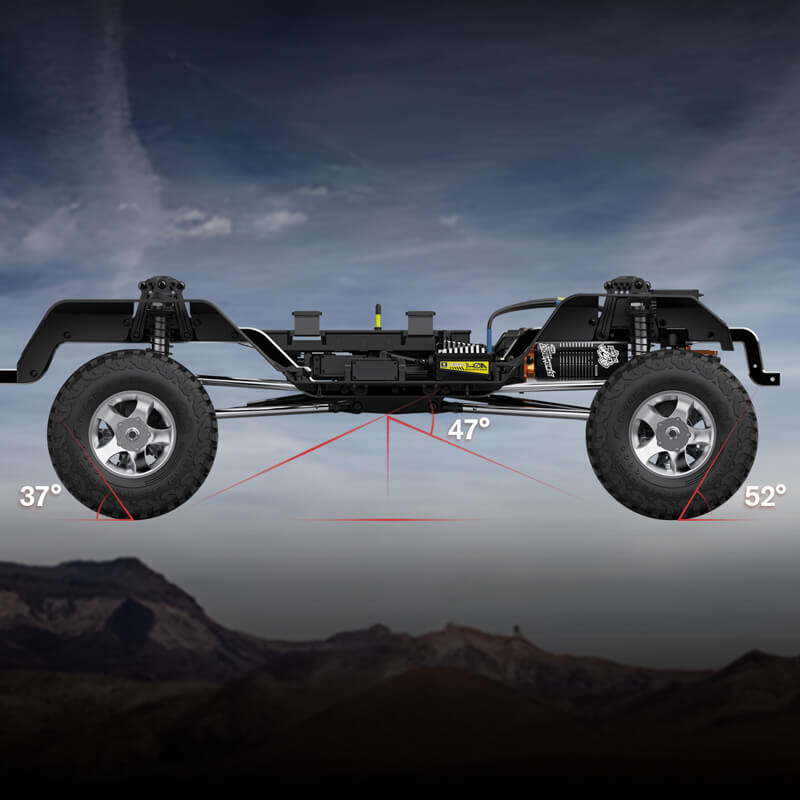

• Approach and Exit Angle Of The Vehicle

  The TK07 features a 52° out-of-the-box approach angle for climbing walls and hills. 37° rear approach angle provides extreme performance even in the deepest ruts

• Driveshafts and Suspension Links

• High Ground Clearance

• 45° Steering Angle

• Front Motor Design

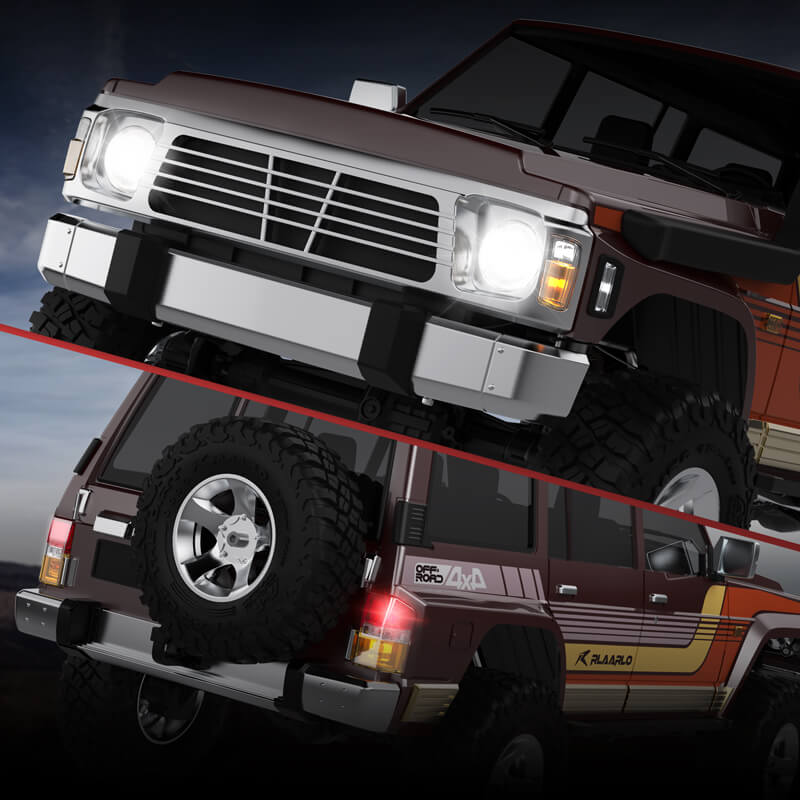

• Extensive Lighting Systems

  TK07 is equipped with a fully linked lighting system, with LED headlamps and taillamps adding a sense of realism at nightfall

• 1.5MM PC Car Body

• Simulated Bumper

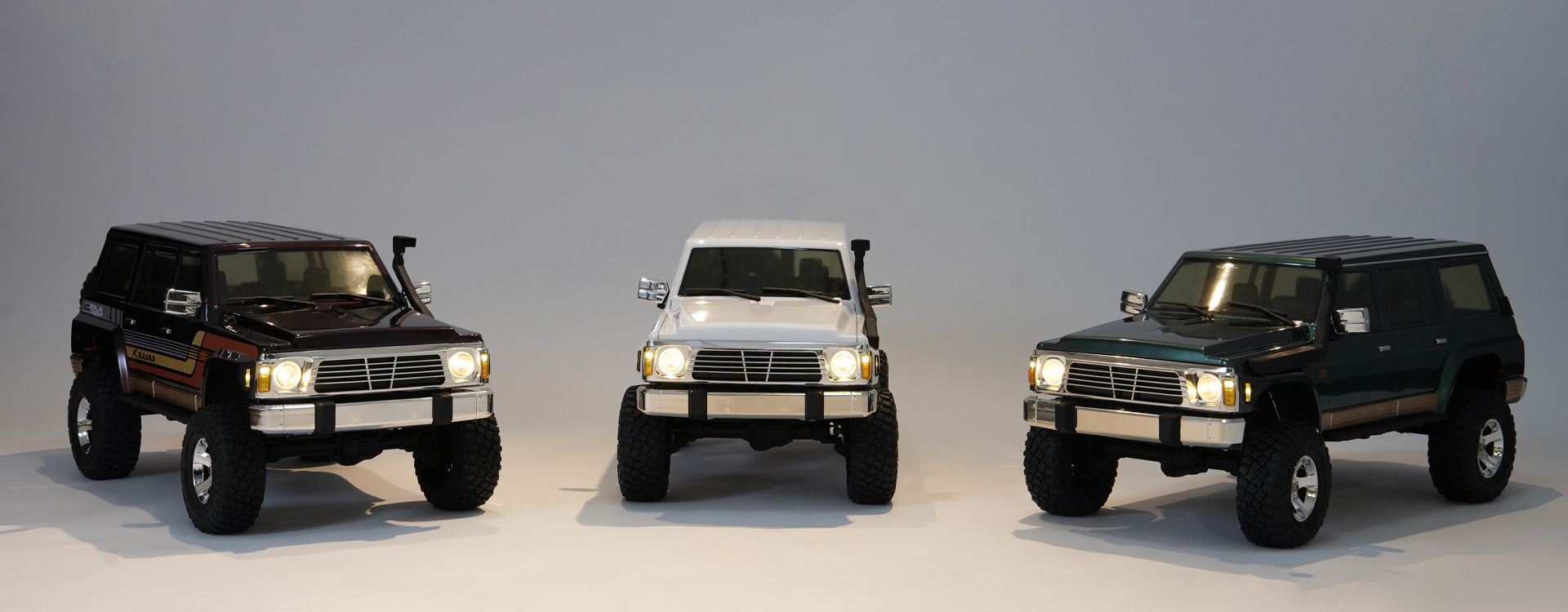

• Realistic Appearance

• Simulated Backup Tires

• 5280 High-Power Brushed Motor

  TK07 brushed version is equipped with a 5280 motor, which is made of strong neodymium-iron-boron magnetic material and runs smoothly, making it suitable for beginners or enthusiasts who need to maneuver finely

• 140A Brushless ESC

• 4282 Brushless Motor

• 140A Brushless ESC

• 45KG Brushless Steering Servo

• 10-Channel Radio System

• TK07 RC Crawler car shell is made of 1.5MM-thick PC material, which can withstand high-intensity shocks and vibrations in complex terrain and is not easy to break
• TK07 RC Crawler car shell is fixed with a spring-loaded swivel clasp, which perfectly combines smooth body lines with safe and convenient locking, making the disassembly and installation of the car shell simpler than ever and maintenance more convenient

• Equipped with a 4282 high-torque 2600KV magnetic encoding FOC sensored motor, featuring a high-speed digital sensor that requires no calibration, the motor is plug-and-play. The sensor supports hot-swapping with strong anti-interference and high signal quality.

• The FOC ESC supports 2-4S batteries with a continuous current of 140A, utilizing vector control technology. Compared to square wave ESCs, it saves 5%-20% energy, providing longer run times for climbing adventures. The acceleration and deceleration performance of the FOC ESC is over twice as fast as square wave models.

• The high-torque motor meets the needs of most large-scale crawlers on the market. Its low-speed linear torque compensation allows the vehicle to easily overcome obstacles while maintaining perfect balance. The vehicle excels not only in climbing scenarios but also in sand running and drift, offering users an ultimate control experience.

Note:

• Battery and Charger Sold Separately
